Dashboards for particular views are built using Looker Studio (previously Google Data Studio), and embedded into the application. Dashboards to display against a survey view are defined here.


Dashboard Column names

Dashboard Column Explanation

Name

The display name of the dashboard

URL

The URL provided by Google Data Studio for embedding the dashboard

Enabled

Setting this to true will show allow the dashboard to be selected in the application


To enable the dashboard in the application, the following needs to be completed in Looker Studio:

  • Create the dashboard as usual

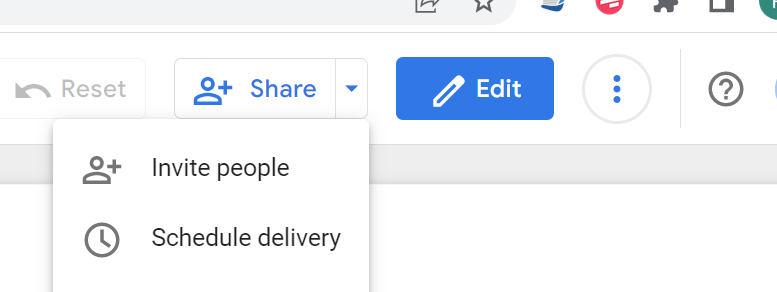

  • Navigate to the sharing options on the top right of the page

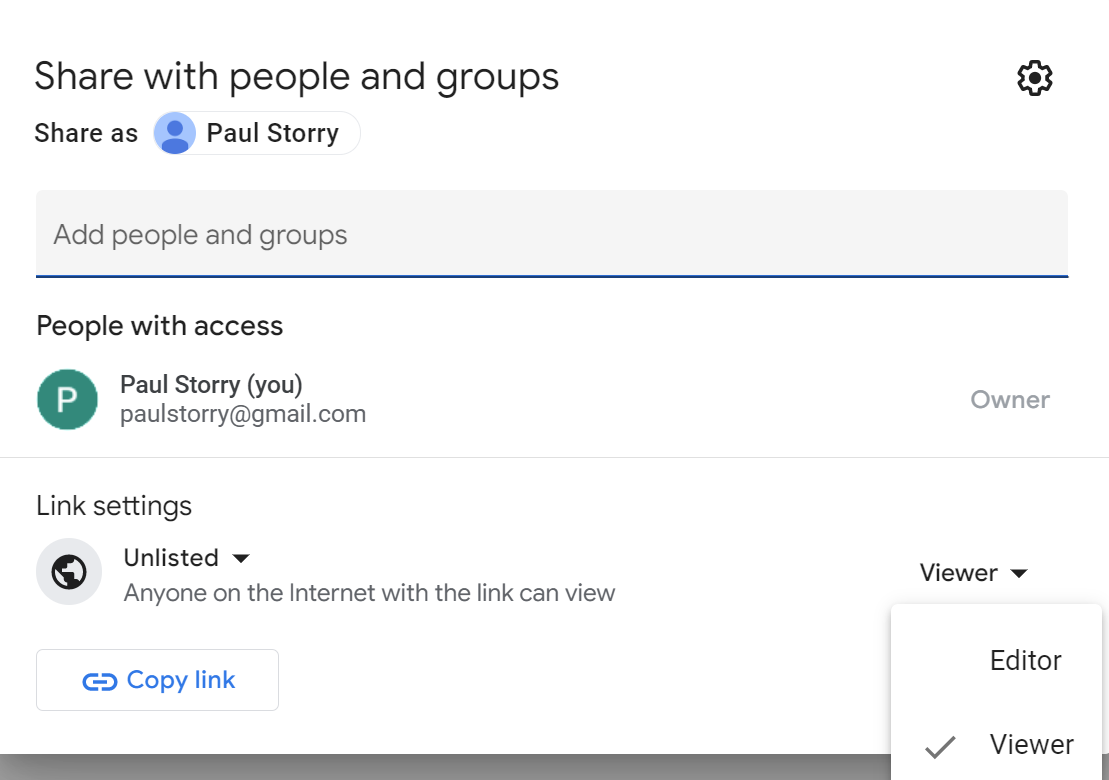

  • Go to Invite people and set the Link settings to Unlisted with Viewer properties

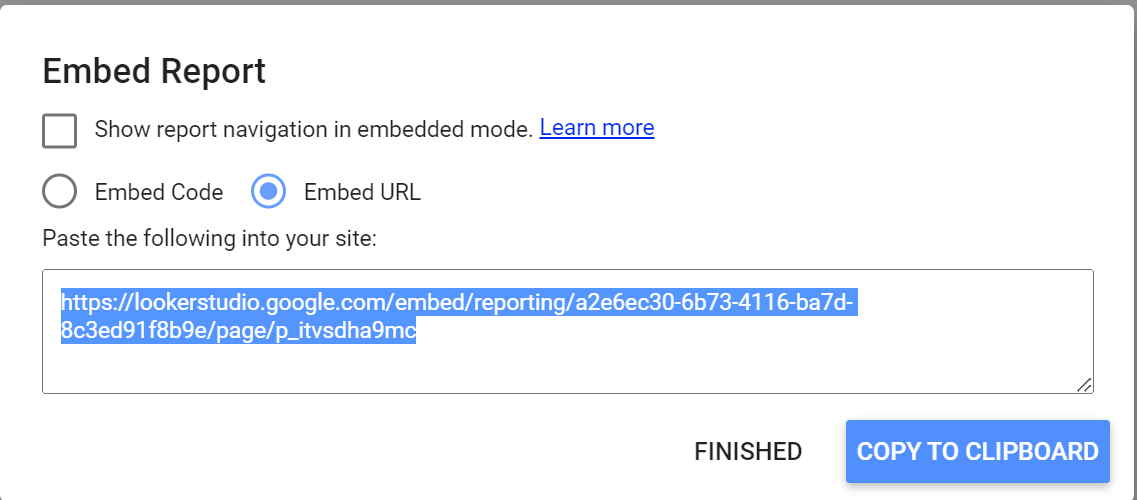

  • Click done and go back to the Share menu and click Embed report.
  • Click the Embed URL radio button and copy the URl to Clipboard



  • Paste this link into the URL field on the Dashboard admin page as shown in the table above
